Karoo OS - Elevation Graphs

The Upcoming Elevation Graph works on a pre-planned route or when navigating to a Pin or Point of Interest.

Route to Home from Control Center, tap on any POI mid-ride, or long-press to navigate anywhere and you’ll be able to see a full-resolution elevation graph in the Upcoming Elevation data field.

You will also see the elevation graph change if you have gone off-route and Karoo has rerouted you.

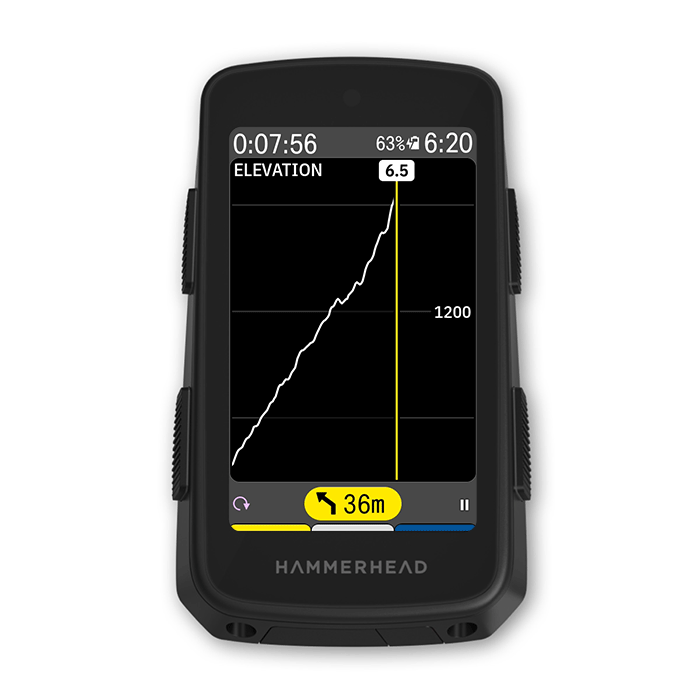

Upcoming Elevation Graph:
The upcoming elevation graph of a route is plotted when a route is loaded
or if you are navigating to a POI.
Double-tap to change the zoom level.

Historic Elevation Graph:
The historical elevation graph shows the elevation profile of the path traversed.

Notes:

• The X-axis shows the distance ahead of the rider.
• The Y-axis automatically adjusts to fit the visible data for the climb in m or ft.
• The "Rider's position"(Dot with yellow line) is represented at the far left of the graph.
• The graph then feeds in from the right and off to the left with the rider dot an X-axis line scaling up and down to draw along the graph line.
• When a route is loaded the upcoming elevation graph shows a default window size where the X-axis size is 2 miles / 5 km. Double-tap to toggle between different zoom levels.

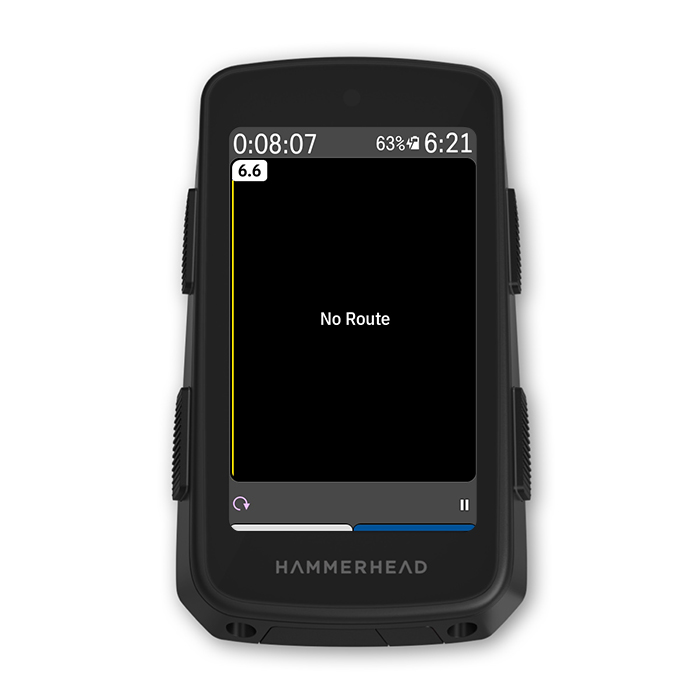

The Upcoming Elevation Graph will not display if no route is added.
An indication saying "No Route Added" is shown.
