Karoo total ascent wrong calculation.

Follow
Avatar
Guillermo Diaz Lorenzo

Hello everybody.

Recently I bought a new Karoo, in replacement of my old Garmin device. All I have to say is an incredible device and Im in love with it. But have a little bug/error, that I think most of you are experience, the total ascent field (elevation gain) is wrong calculated, is adding more meters.

I opened a ticket, but the resolution was that my barometric sensor is not working well, in my opinion and after analyzing the elevation profile, I can say that the barometric sensor is working well, is not a hardware error.

After analyzing the data a reprocess the .fit files elevation data, with a python script who is recalculating the total ascent (and getting 1% of error, a big improvement vs the Karoo calculation who is bigger than 10% error), my conclusion is that the software algorithm that is calculating the total ascent in the Karoo is not filtering the sensor's noise (small variations that sensor reports, less than <1m, that are added to the total ascent field).

I open this post here, to know if more of you have the same issue, one way to know is if you have your activity uploaded to Strava, in the activity options press "Adjust Elevation", and see the diference.

Hope the developer team read this, and consider release a fix to solve this problem.



4

Comments

3 comments

Sort by Date Votes
  • Avatar
    Rubén Martínez

    Hi Guillermo! Same issue here. 4 rides with the Karoo 3 and all of them with much higher elevation gain than the real one. I have just submitted a ticket requesting support to Hammerhead and explaining the problem and attaching some .fit files.
    Bests,
    Rubén

    3
    Comment actions Permalink
  • Avatar
    Ric Harris
    • Edited

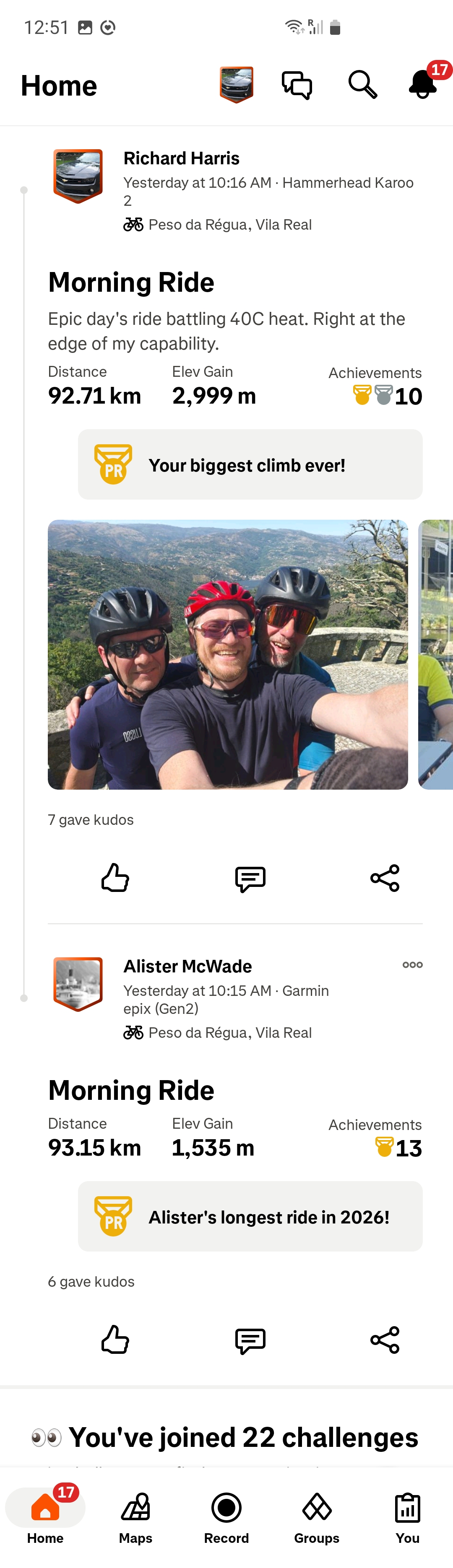

    Same problem here. Just did a ride where the planned route was 1910m ascent but riding the route logged 2999m, where my friend with Garmin got just 1535m (see attached). I suspected that this was over-accuracy of the calculation based on the GPS altitude readings, so good to have it confirmed.

    1
    Comment actions Permalink
  • Avatar
    Susan Vanesch

    I have got a similar problem and find it particularly annoying in planning routes. When I transfer existing routes from RideWithGPS to my Karoo I sometimes get more than double the predicted elevation gain, with individual climbs being over 45% rate of increase. This makes it really hard to plan routes in unfamiliar countries as I don't know what %increase to calculate with

    1
    Comment actions Permalink
