Karoo OS - Data Field Design

You can customize certain visual design elements of your data fields to suit your riding style and preferences.

Here are the steps to customise your Data Field Design on the Karoo:

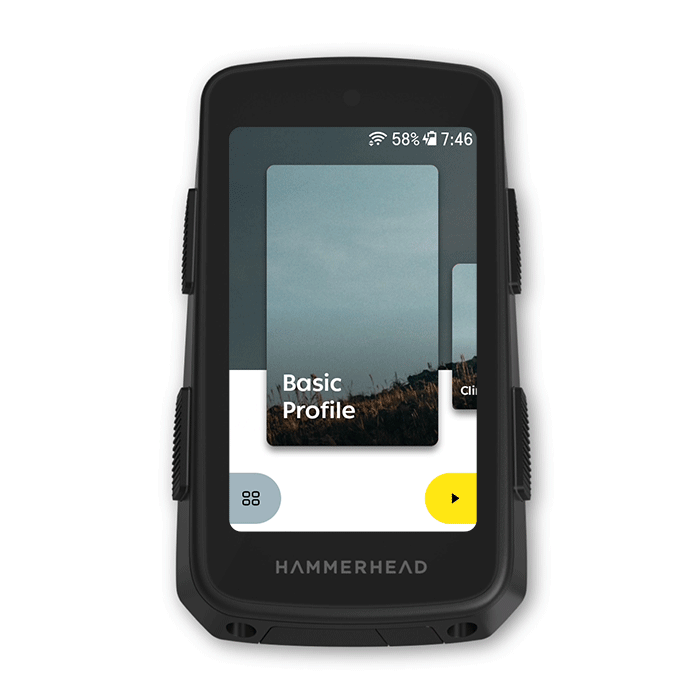

• On the Home screen, click on the "Apps" button.

• Click on the "Settings" app.
• Scroll down and select "Data Field Design".
• Customise the options according to your preference.

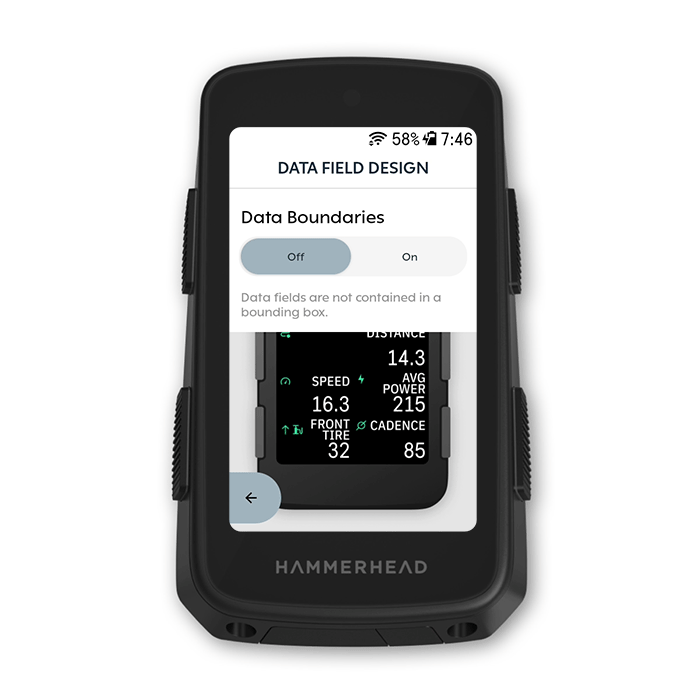

Data Boundaries
You can choose between having in-ride data boundaries ON or OFF.
Note: All profiles default to data boundaries turned ON. Even if you turn these OFF for in-ride, data boundaries will still be shown in the data page layout editor to make editing your pages as easy as possible.

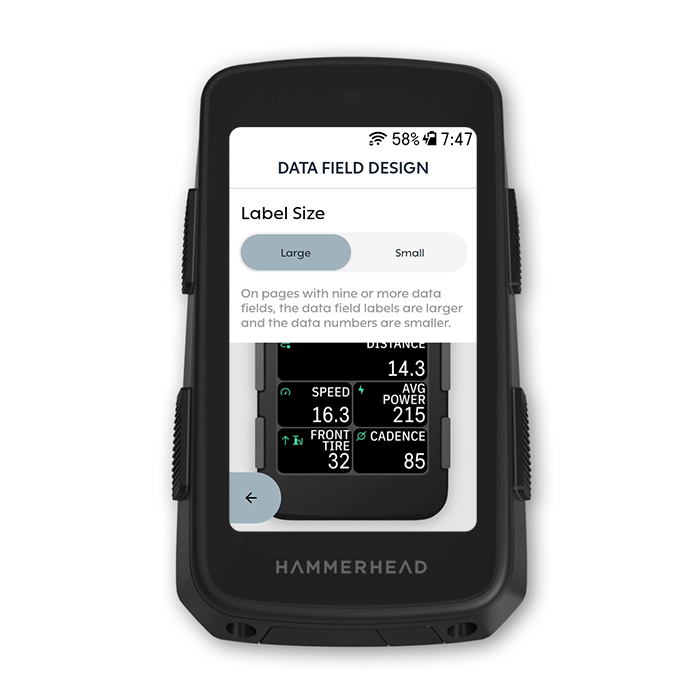

Label Size
You can choose your preference for Small or Large data field labels.
If you select Small Labels, on any data pages with Nine or more data fields, the data field labels will now be smaller and the data numbers will now be larger.

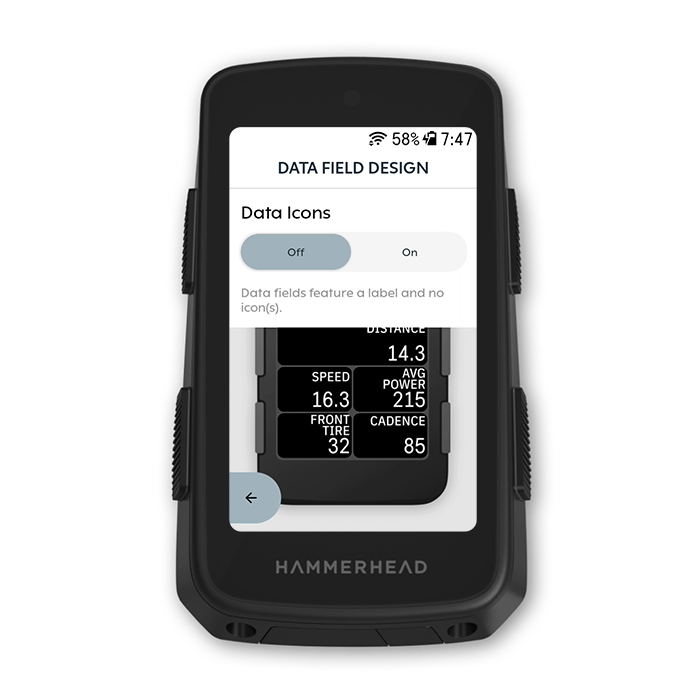

Data Icons
You can now choose your preference for Data Icons ON or OFF.
Note: If you turn Data Boundaries Off, we recommend turning Data Icons Off as well.

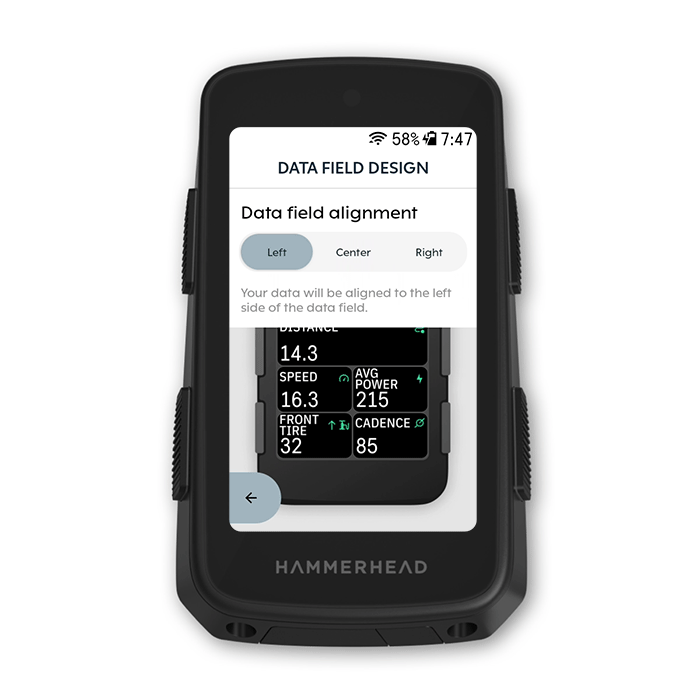

Data Field Alignment
You can configure the alignment of your data field values.
Choose between Left, Center, or Right.

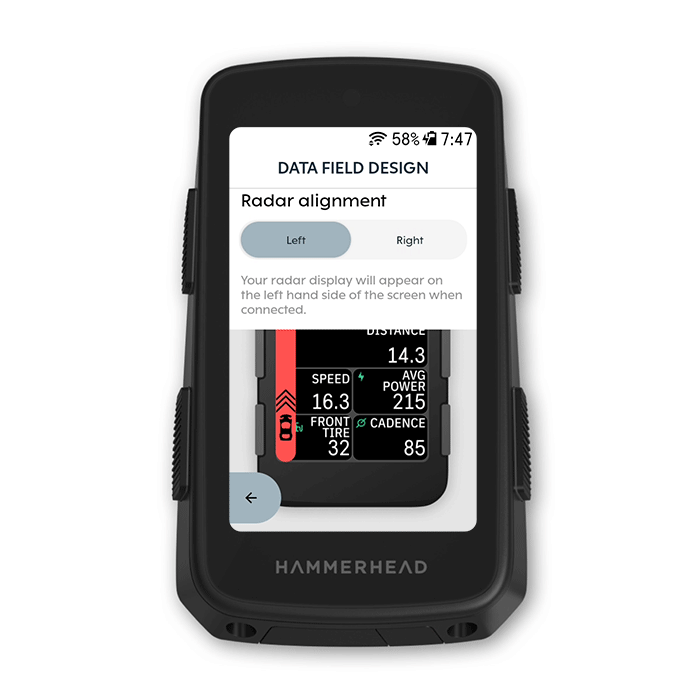

Radar Alignment
You configure your Radar Car-track sidebar alignment.
You can set it to the Left or Right side of your data pages.
Note: We recommend changing your data field alignment to left or center when radar is on the right.
