Karoo OS - Pairing Sensors

Karoo can connect with any number of Bluetooth® Low Energy and up to 15 ANT+™ sensors simultaneously.

Here are the steps to pair a sensor with your Karoo:

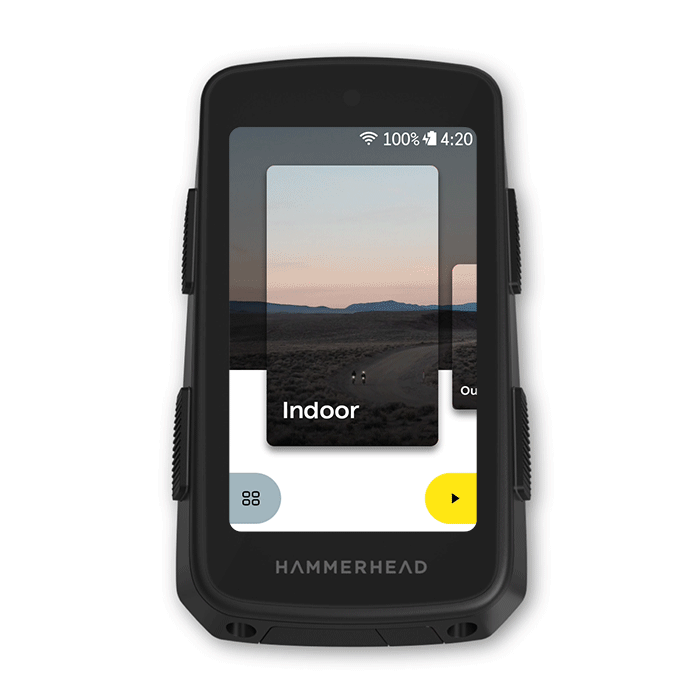

• On the Home screen, click on the "Apps" button.

• Click on the "Sensors" app.
• Tap on the"﹢" button to start the search for nearby sensors.
• Once the nearby ANT+ / BLE devices are listed, select the sensor that you want to pair with.
• Tap on the"✓" button to confirm pairing.
• You will see a green confirmation screen.
• The chosen sensor will now be paired.

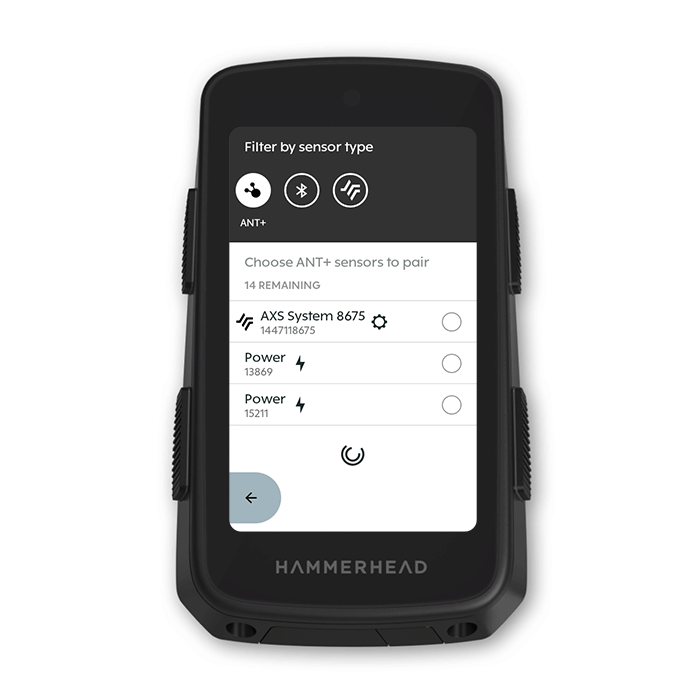

You can filter by Sensor type when searching for Sensors.
There are 3 options: ANT+, Bluetooth and SRAM AXS.

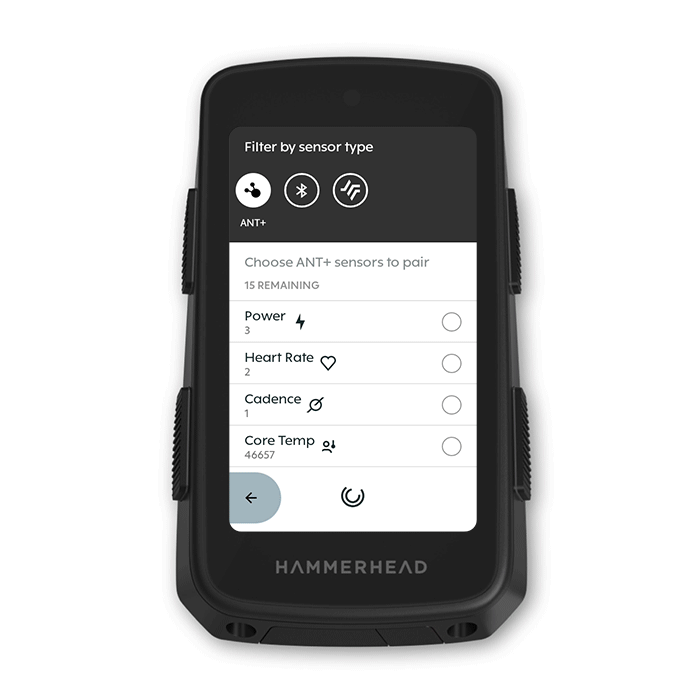

You will see the limit for ANT+ sensors on the top.

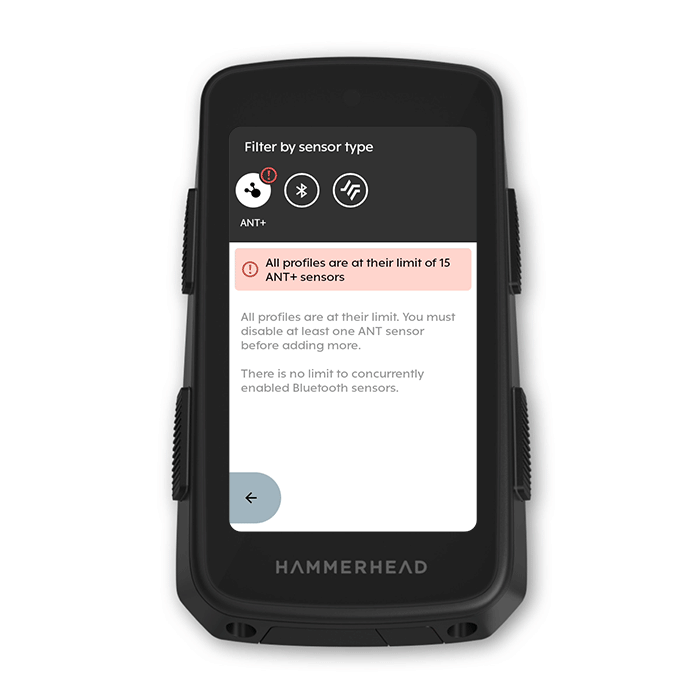

If you have paired 15 ANT+ Sensors, the Karoo will not allow you
to pair any more ANT+ Sensors till you unpair any paired ones.
This also applies to SRAM AXS as it connects through ANT+.
You can continue to pair Bluetooth sensors.

You can also pair multiple sensors at the same time.
