Karoo OS - Flight Attendant Integration

You can pair a SRAM Flight Attendant to your Karoo to:

• Fully control your paired Flight Attendant system directly from Karoo.
• Record Flight Attendant to the FIT file.
• See live fork and rear shock data, including battery levels in-ride.
• Receive low battery alerts for your Flight Attendant batteries after the ride.

Here are the steps to pair a Flight Attendant with your Karoo:

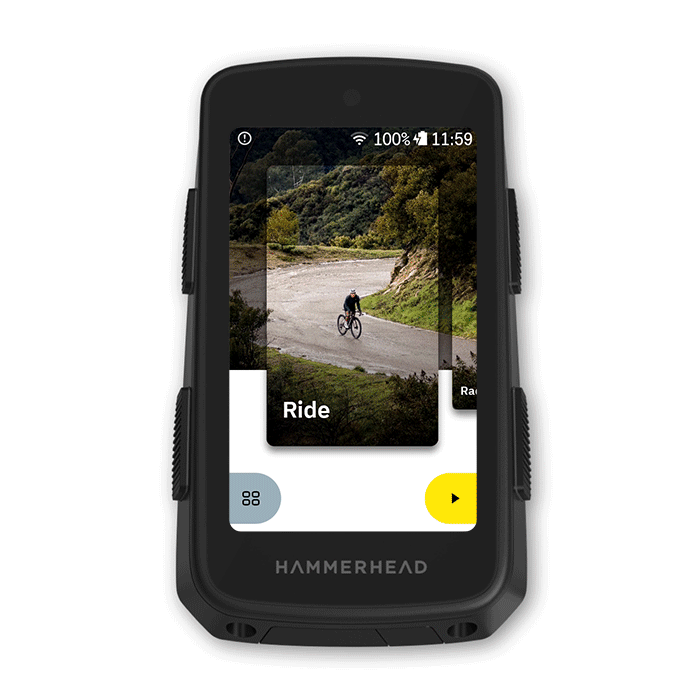

• On the Home screen, click on the "Apps" button.
• Click on the "Sensors" app.
• Tap on the"+" button to start the search for nearby sensors.
• Go to the AXS Tab and select your Flight Attendant. (Karoo 2 Users will see the Flight Attendant under the ANT+ Tab )
• Tap on the"✓" button to confirm pairing.
• On your Flight Attendant, press and hold the AXS button until the light flashes, then release.
• Now, press AUTHORIZE on the Karoo.
• You will see a green confirmation screen.
• The chosen Flight Attendant will now be paired.

Control Center:
You can adjust your Flight Attendant settings (bias, LSC, LED’s etc.) from its own Control Center tab while you are riding.

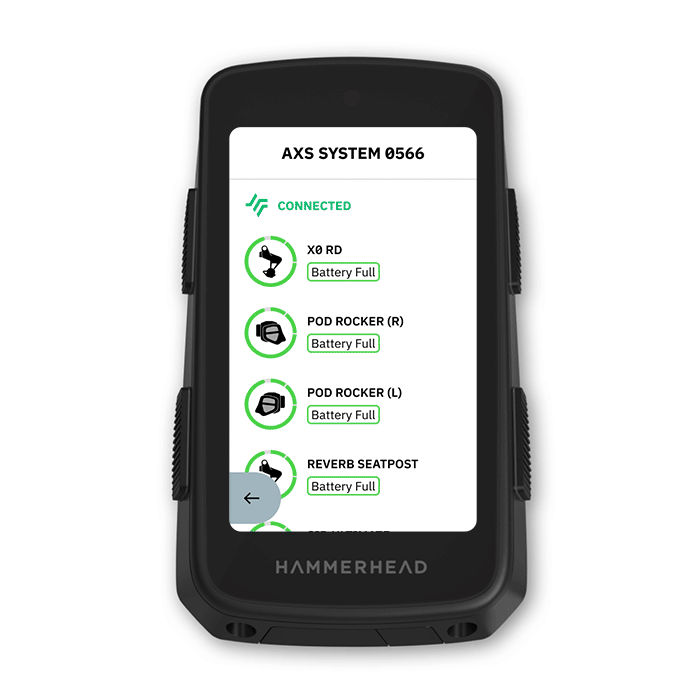

Sensor Details:
You can also access additional Flight Attendant settings (Adaptive ride dynamics, controller configurations etc.) from the Sensor Details menu on Karoo.

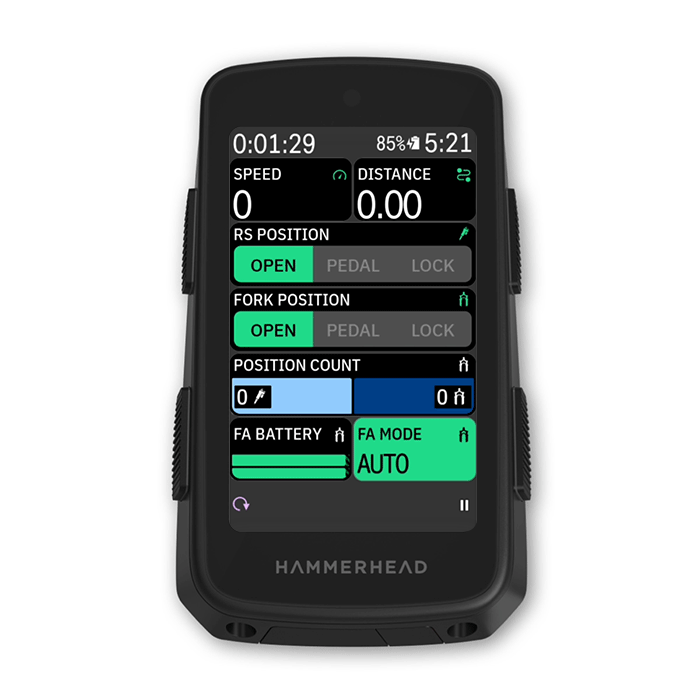

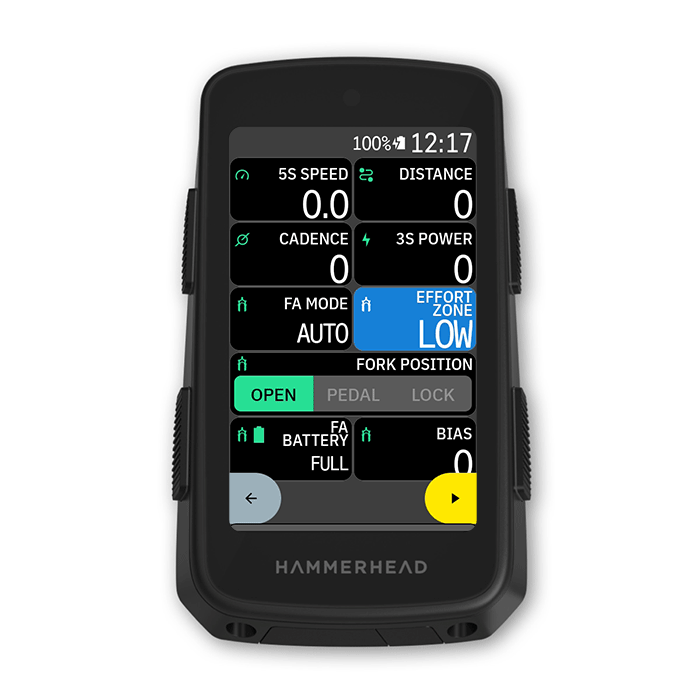

Data Fields:
Fork position, Rear shock position, Flight attendant effort zone, Fork position count, Rear shock position count, Fork and rear shock position, Flight attendant mode, Bias, Fork LSC, Rear shock LSC, Flight attendant battery life.

Error States:
The following states will trigger Error notifications on your Karoo:
Safety: fork battery Low, Shock battery Low, Fork + shock battery low, Shock offline.
Damper Error: Fork, Shock.

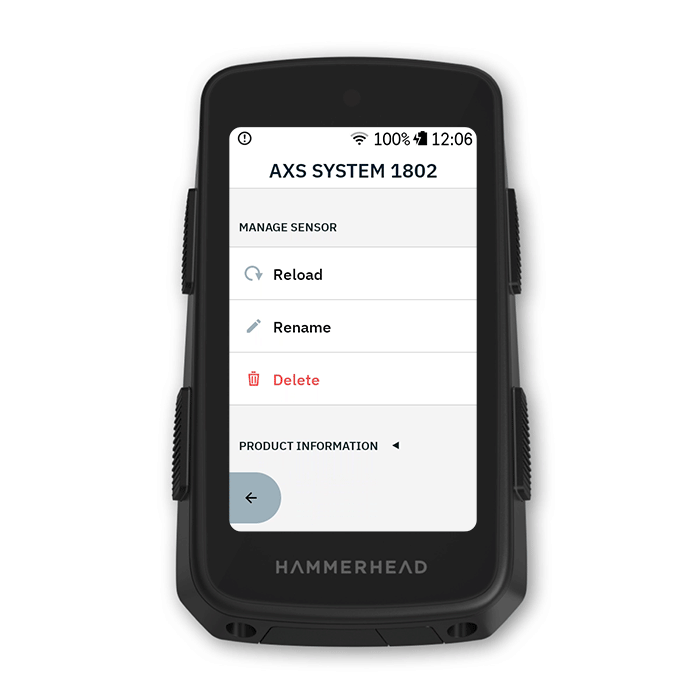

Product Information:
You will be able to see all the technical specifications of the connected Flight Attendant.

Note: We show the last known status of the battery if the sensor is not currently connected.
