Karoo OS - Controlling Karoo with SRAM AXS Controllers

If you pair the Karoo to a SRAM RED AXS system, you can customise and map the Bonus Buttons on the shifters for various functions. Short Press and Long Press can be mapped to different functions.

Pre-requisite: Ensure that the shifters are paired to your main AXS component.

Note: This feature is only available on the Karoo.

Here are the steps to customise SRAM RED AXS Bonus Buttons on Karoo:

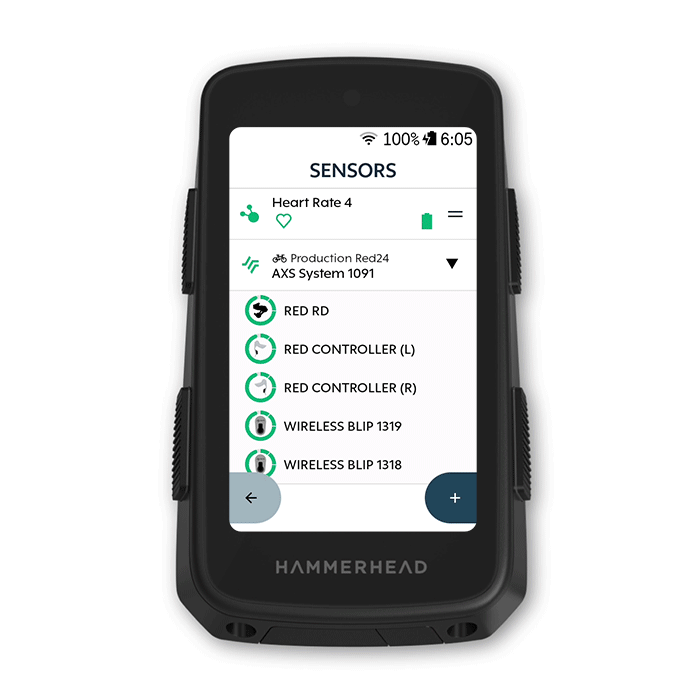

• On the Sensors page, click on the paired AXS Groupset.
• Scroll up and choose "Configure Controls".
• Press the button on your cockpit you’d like to assign an action to.
• Choose between an "AXS Action" or "Karoo Action".
• Choose from "In-Ride Actions", "Workout Actions", "Navigation Actions", or "Karoo Hardware Controls".
• Under the chosen section, choose an Action.
• Tap on the Blue "✓" button to confirm.
• Again tap on the Blue "✓" button to confirm the Action Assignment for that bonus button.

You can also map both Bonus Buttons together as a combo action.

You can also map actions to SRAM Blips.
(Only Short Press)


Here is a list of Actions that you can map to the Bonus Buttons:

• AXS Actions
  • All available options for this controller in the AXS App for the AXS system


• Karoo Actions

  • In-Ride Actions
    • Mark Lap
    • Pause/Resume Ride
    • Show Map
    • Show Sensor Status
    • Open Control Center
    • Open/Close Drawer
    • Change Ride Profile
  • Workout Actions
    • Pause/Resume Workout
    • Reset Workout Interval
    • Skip Workout Interval
  • Navigation Actions
    • Navigate to Start
    • Navigate to Home
    • Zoom Map In
    • Zoom Map Out
    • Drop Pin
    • Add Route
  • Karoo Hardware Controls
    • Karoo Button - Upper Left
    • Karoo Button - Upper Right
    • Karoo Button - Lower Left
    • Karoo Button - Lower Right

    • Audio Alerts On/Off
    • Display On/Off
    • Cycle Display Brightness
    • Battery Save
    • Beep
