Karoo OS - SRAM AXS Groupset Integration

You can pair a SRAM AXS Groupset to your Karoo like any other sensor.
(However, try to pair other sensors after you pair your or SRAM AXS Groupset and not at the same time as this will take precedence)

After pairing an SRAM AXS Groupset to your Karoo, you can:

• Program your AXS controllers to control Karoo.
• Record shift data to the FIT file.
• See current gear and battery levels in-ride.
• Receive low battery alerts for your AXS batteries after the ride.

Here are the steps to pair a SRAM AXS Groupset with your Karoo:

• On the Home screen, click on the "Apps" button.

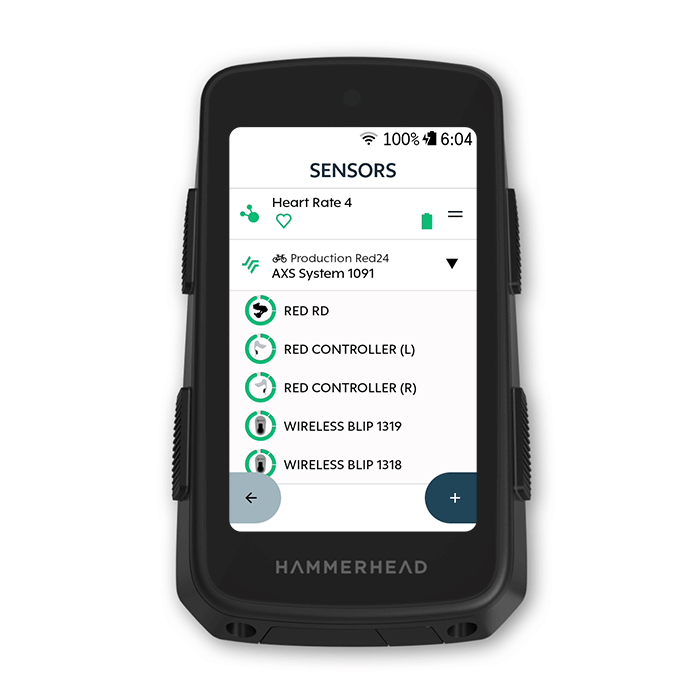

• Click on the "Sensors" app.
• Tap on the"+" button to start the search for nearby sensors.
• Go to the AXS Tab and select your Groupset.
• Tap on the"✓" button to confirm pairing.
• On your Rear derailleur press and hold the AXS button until the light flashes, then release.
• Now, press AUTHORIZE on the Karoo.
• You will see a green confirmation screen.
• The chosen SRAM AXS Groupset will now be paired.
• You will be prompted to Configure your gearing now.

Graphical Data Field:
Gears(Visual)

Numeric Data Fields:
Gears, Front Gear, Rear Gear, Groupset Battery,
Total Shifts, Front Shifts, and Rear Shifts.

Sensor Details:
You will be able to see all the Battery and Sensor configuration
details about a connected SRAM AXS Groupset.

Product Information:
You will be able to see all the technical specifications
of the connected SRAM AXS Groupset.

Note: We show the last known status of the battery
if the sensor is not currently connected.
